Black Waste oil distillation to new light diesel fuel oil recycling plant

FOB Reference Price:
US $1,000-80,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
FS-HDM-5/10/15



Request a Quote

Contact Us






  • Description

Description

welcome

Product Description

product description

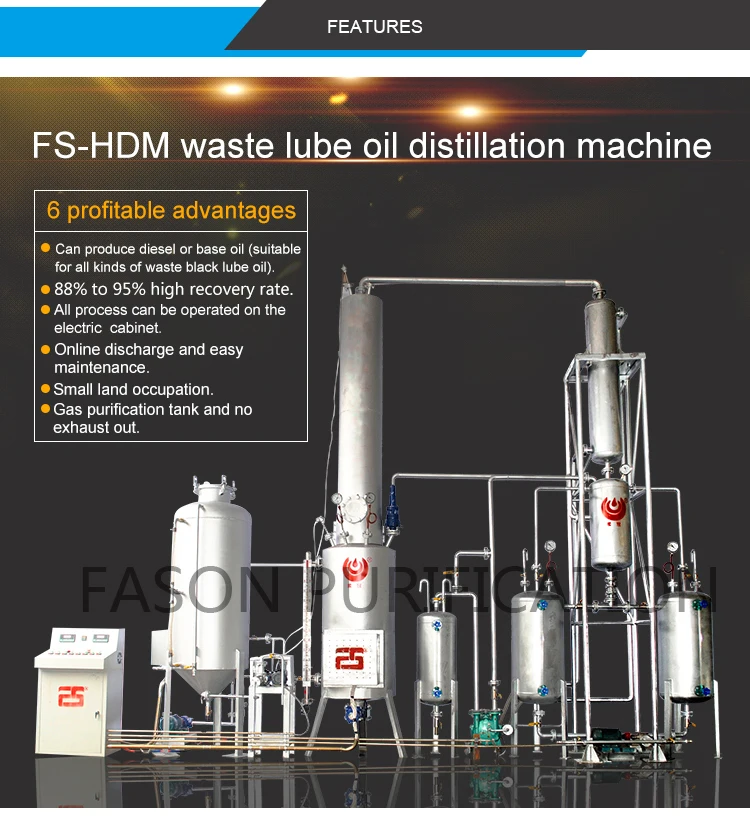

FASON waste lubricant oil distillation plant is a newly developed product which combines dozens of our latest technologies. It is able to rapidly extract light and heavy distillates from different fractions by given different temperatures control along with our own formulated catalyst compound. It can also remove the Metallic Compound, Base Nitrogen, Sulfur etc. from distilled oil during Re-refining process. The end product after distillation could be adjusted into either new base oil or golden diesel fuel according to the customer demands.The characteristics, spending huge sums of money and experts at home and abroad to research and develop, the original full-bridge rectifier technology, environmental protection, energy-saving, efficient, safe and scientific and reasonable waste mineral oil refining device. Combine the multi-level differentiation of traditional refining methods with the traditional. The classification heat treatment separates the components in the waste mineral oil to achieve the highest quality diesel and base oil. The gas phase and the liquid phase are forced to flow backward in the catalytic system during the multi-stage distillation differentiation process to form a vortex into the rectification column. In the process of utilizing the heat flow principle and the components in the mixed gas liquid have different processes and are in early contact with each other, the light components and the heavy components in the liquid phase are rectified. The light component forms a gas phase, and the heavy components in the gas phase form a liquid phase, thereby achieving a steady flow of the liquid mixture for perfect separation. The gas is compressed and shunted to produce liquefied petroleum gas to achieve full utilization of resources, and the environment is zero-pollution. The device has continuous production, does not cause any pollutants, does not use chemical reagents, and is characterized by fractional distillation.

collect waste oil

Technical Parameters

Technical Parameters



Item

FS-HDM-5

FS-HDM-10

FS-HDM-15

Capacity  From Lube oilDiesel5TPD10TPD15TPD
Base Oil8TPD15TPD20TPD
  From Pyrolysis oilDiesel8TPD15TPD20TPD

 Average Power

  48 KwH

  135KwH

  158 KwH

 Total Power

  130KwH

  202 KwH

 238 KwH

 Vacuum Degree

≤ -0.06-0.09MPa

 Oil heating Temp

175℃-400℃

 Voltage

220V/380V/240V/415V(as per requirements)

 Noise

≤70dB

Note:If requires bigger capacity, will recommend you to buy 2,3 …Lines etc.

Product Details

product details-2

Work Process

Working Flow Chart

Technical indicators



PROPERTYTEXT METHODUNITRESULT
AppearanceVisualClear & Bright
ColourASTM D15000.5 MAX
*Flash PointASTM D92240 MIN
*Pour PointASTM D97-15 MAX
*Density @ 15℃ASTM D1298Kg/I0.89 MAX
*Viscosity [email protected]ASTM D445cSt95.00 MIN
*Viscosity [email protected]ASTM D44511.00 MIN
Viscosity IndexASTM D2270100 MIN
*Sulphur ContentASTM D4294-10%m0.776
Why Choose Us

why choose us

Company Information

company profile

Our company manufacturing all kinds of waste oil recycling machines , used oil purification and decolorization equipment and waste lube oil distilation plant in different kinds of industrial field for transformer oil, turbine oil, hydraulic oil, gear oil, compressor oil, insulation oil, engine oil, cooking oil, and tire pyrolysis oil etc. Fason have our own factory with more than 5000 square meters & office with 500 square meters area and more than 100 employees. Up to now, we have obtained over 40 patents in oil recycling field, and gained the national high-tech innovation invention awards for multiple times.



Fason has already become an industrial leader of the oil purification and refining equipment which combines the R&D, manufacturing, sales and service all together. With its high quality and good reputation of our hotselling machines, we have already exported our machines to more than 70 countries, such as Russia, Mexico, Chile, Thailand, Egypt, Nigeria, Vietnam and so on. The entire plant applies the pure physical working principle, even heating and self-balancing flow, it has no damaging of oil substances.



our team

our customers

Certifications

certification

FAQ

faq



Q:Are there any bad smell or odor from FS-HDM/MDP waste oil distillation plant while the system is working?

A:There will be no smell at all as the gas produced by FS-HDM/MDP waste oil distillation plant will be purified by our exclusive tail gas purification unit before emission.

……………………………………………………………………………………………………………………………………………………………..

Q:What are the consumables of this distillation system? Are those additives required?

A:There are 2-3 consumables which will be needed for FS-HDM/MDP waste oil distillation equipment are as following, one is our formulated catalyst, another one is refining adsorbent, and catalyst for desulfurization process of diesel fuel is required as well. As a matter of fact, those consumables required for FS-HDM/MDP process are carefully selected and proved to be essential to the distillation/pyrolysis process even for those famous refineries from allover the world.

……………………………………………………………………………………………………………………………………………………………..

Q:What is the byproduct out of FS-HDM/FS-MDP waste oil distillation plant, how do I dispose it?

A:The byproduct are usually comprised of gas, water, oil sludge/residue and catalysts. The gas will be purified before emission or to be recycled as heating fuel; The water will be filtrated and purified as cooling water; The oil sludge could be used for burning or to be raw material for producing asphalt or road constructions; The catalysts can be reactivated by microwave or other technologies for reuse. Or to be handed over to the professional recycler for disposal.

……………………………………………………………………………………………………………………………………………………………..

Q:What is the operation cost of this distillation system? How long can I take back my investment?

A:The operation cost often includes labor cost, energy consumptions, consumables, maintenance etc. Please consult one of our sales representative for more information about operation cost and turnover of capacity you are interested. We will be providing you the professional budgets breakdown for your particular project.

……………………………………………………………………………………………………………………………………………………………..

Q:What is the yield of this system? How long can I take back my investment?(MONTHLY TURNOVER)

A:Typically 88-94% depending on different ratios of water content, diesel and others. Assuming you bought one of our FS-HDM waste oil distillation plant to process 5Tons – 20Tons of waste oil per day.

……………………………………………………………………………………………………………………………………………………………..

Q:Where is your factory located? Is it possible to see a live demo in your factory?

A:We are located in the Chongqing, China(a capital city in the south west of China), you are welcome to visit us in our factory and we will be showing you a live demo with actual waste oil for one of our distillation system. You could also check everything else of our machines and factory, after that we can have more discussion for the details of our waste oil distillation plant and the contract.
